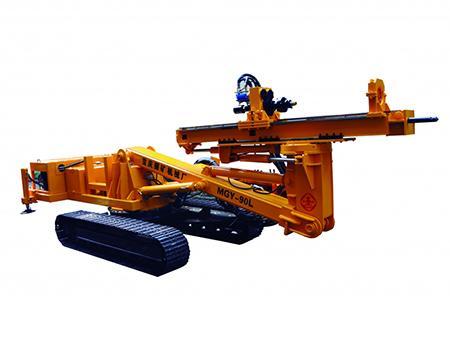

Hydraulic Anchor Drilling Rig, Type MGY-90L

The hydraulic drill rig mainly used in landslide remediation projects for railways, highways, hydrology, hydropower stations and drilling for anchoring hole, drainage hole, grouting hole construction, tunnel pipe roofing for the foundation pit construction anchoring project.

• The drill rig has compact structure and equipped with crawler track which each the process of moving and be in place. Chassis, mast and other modulation mechanism are controlled hydraulically. Adjustment between 0.5-6 meters of various hole positions is achievable. It has easier operation and can be operated at a further place and thus better safety assurance.
• Hydraulic motors and hydraulic pumps are from international well-known brand. It has stable overall performance, reliable and long lifespan.
• Power head and guided rail are connected with new wear-resistant materials. Therefore, the guide rail wears little.
• 2 rotating support and 3 modulation mechanism is designed prior to the rigidity of the drill rig is ensured. This is to allow wide range of angles adjustable for the drill rig and easier to align it with the hole positions. Radial drilling can reach 101.5°～+90° (the reference level is 0°) while the crawler track is fixed. The drill rig rotary angle on the track reaches -12 ° ~ +96 ° (0 ° when the rig arm and crawler track is in horizontal direction), the lateral drilling height reaches 480mm ~ 6300mm.
• The drill rig is designed with a rig tool placing zone to enhance the applicability of the drill rig construction.
• It has wide range of application and strong drilling ability. It has long stroke of the power head and high drilling efficiency.
