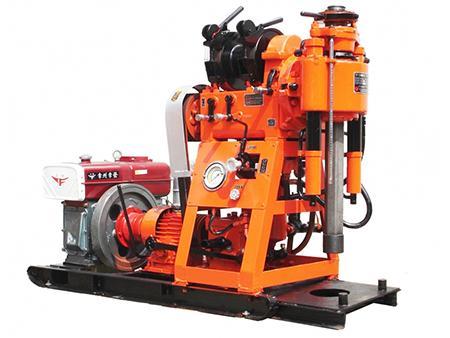

Exploration Core Drill Rig, Type HT-150E
Exploration core drill rig type HT-150E is a new type of shallow borehole drill which is mainly used for geological engineering and core drilling as auxiliary. It is applicable in geological surveys of the constructions of railways, highways, bridges, power stations, tunnels, civil and industrial buildings, small scale water well drilling as well as core drilling. The drilling depth is 150m.
Parameters| Drilling depth (Φ 42 drill pipe) | 150m |
| Hexagonal Kelly | 51X46mm |
| Gyrator speed | 99-1019r/min |
| Maximum torque output of vertical axis | 750N.M |
| Maximum lifting force of vertical axis | 30KN |
| Maximum stress of vertical axis | 23KN |
| Gyrator angle | 360° |
| Single rope maximum lifting force | 11KN |
| Single rope lifting speed | 0.413-4.237m/s |
| Mass of drill rig | 530Kg |
- HT-150G type drilling rig is a vertical drilling rig which adopts mechanical transmission and hydraulic feeding. It is equipped with a ball clamp for easy and safe operation.
- Water pump and drill rig are installed on different bodies and thus can be driven together or separately by single force. It is convenient for dismantling and relocation.
